Description
Drilling and milling cnc machine with pass-through panel complete with upper and lower drilling head , electrospindle, DOUBLE gripper for dragging the panel and front and rear pneumatic presser. Top and Bottom drilling unit.
DRILLINGS ON ALL 6 FACES OF THE PANEL
PANEL SQUADRATING ON THE 4 SIDES AND THE POSSIBILITY TO MAKE PASSING DEVELOPMENTS.
Thanks to digital drives and fiber-optic connections, absolute precision and high working speed are guaranteed. Software manages head parking near the access door for easy change of drills, blades and cutters.
UPPER + LOWER DRILLING HEAD CONFIGURATION
- 12 vertical spindles
- 2 + 2 horizontal spindles along X-axis
- 2 + 2 horizontal spindles along Y-axis
- Blade Unit 120 mm Ø
- Drilling Unit power 2.2 kW (3 Hp)
- 10 lower vertical spindles

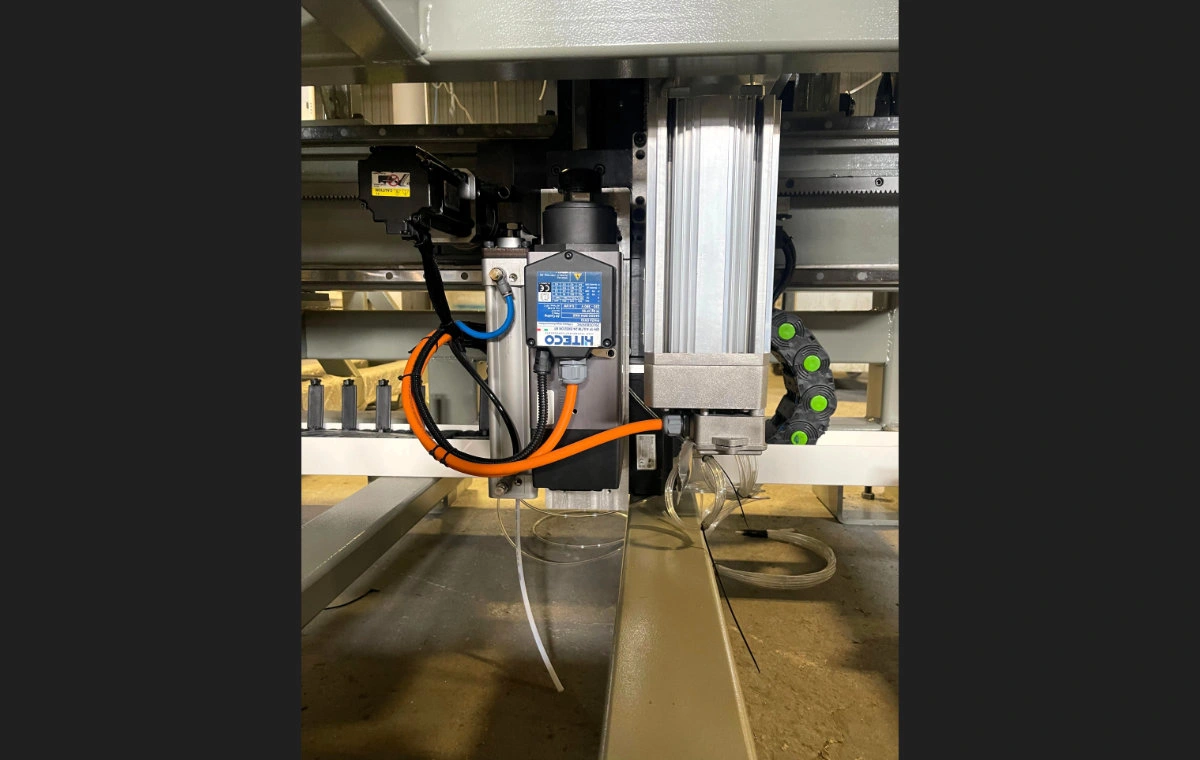

ELECTROSPINDLE 8 kW (9.5 Hp)
Two air flotation tables, at the input and output, guarantee high smoothness of the panel. The fan is located under the rear level, easy to access and clean.
All products comply with the current CE regulations in force for dust extraction, noise and safety.
STRENGTHS POINTS
Axis movements on pinion and rack with ETHERCAT digital drives. Even in the Z axis to maintain high working speeds and maximum precision.
Squaring on the 4 sides of the panel.
Possibility of working doors with angular transmission and anti-rotation flanges (opt).
All upper electrospindles are cooled by compressed air for prolonged use, lasting over time and without loss of performance.
Pneumatic block for working hard materials.
Video
Dedicated accessories
- SAVE ENERGY pneumatic electrical cabinet Air conditioning.
- Automated loading and unloading.
- Possibility of customer-specific machine and software development.
Dedicated software
- TPA CAD graphic programming system – created in a Windows® environment,
offers a simple and functional interface. - Parametric programming.
- MACMAZZA programming CAM for machine logic management.
- Cycle optimization.
- Creation of TECNOTOOLS tool databases, with the aid of graphics and photos.
- Drawing reading in import and export in DXF and ISO format.
- Customizable job database.
- Creation of programs using specific macros.
- 3D visualization of the panel and individual work faces.
- Highly customizable macro programs for emptying, radiusing and squar
Technical sheet
| Panel width max-min (Y) | 1400mm – 50mm |
|---|---|
| Panel lenght max-min (Y) | ∞ – 150 mm |
| Panel thickness max-min | 60mm – 8mm |
| Axis stroke | 4000mm(X)-1200mm(Y) |
| Axis rapid speed | 120 m/min |
| Vertical spindles | 12+10 |
| Horizontal spindles | 2+2(X)-2+2(Y) |
| SAW BLADE | 120mm |
| Dust extraction hood | 1X Ø 140mm |
| Air pressure required | 8 bar |
| AUTOMATIC LUBRICATION | STANDARD |
| MACHINE STATUS LED | STANDARD |
| Automatic blowing rack cleaning | STANDARD |
| CE REGULATION | STANDARD |
Quality
High quality mechanical components, long life and reliability.
Efficiency
Compact and high-performance. Quick setup and simplified production processes. Greater automation and flexibility in the costing of the final product.
Easy to use
Intuitive, fast and efficient software. Work lists for easy production start-up.
Environment
Suction system for a clean and comfortable environment.
